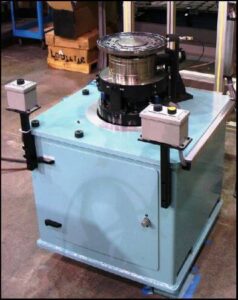

Stiff Pivot Non-Rotational Balancer

Machine Structure

  • Heavy Duty Steel Base (25mm thick Plate Steel)
  • Heaviest & Most Stable in the Industry
  • No Special Floor Foundation Requirement (Significant Value Add)
  • Easy to install and reconfigure locations
  • Over-Travel Limiters to Protect Balance Unit
  • Stainless Steel Tooling Plates
  • Non-Rotational, Gravitational Technology

Instrumentation, Software & Hardware

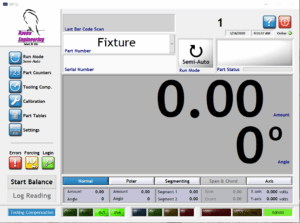

  • Windows Based PC Software with Touchscreen
  • Polar Display
  • Comma Delimited Data Collection
  • Auto Zero and Calibration
  • 180 Degree Tooling Compensation
  • Nema 12 Electrical Enclosure
  • APC Battery Back Up and Clean Power

Tooling

  • Spring Loaded Gravity
  • Pneumatic Chuck Available for Specific Application

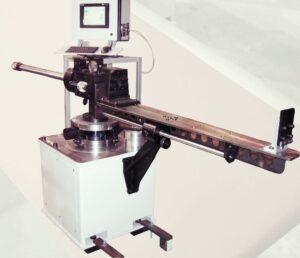

  • Moment Fixtures Available for Specific Application

Machine Performance & Capability

  • 1.67 Cpk or Better Capability (where applicable)
  • 10% GR&R or Better
  • Residual Amount & Angle Targeting Software
  • High or Low Point Unbalance Marking
  • Air Dampening Technology for Extremely Fast Cycle Times
  • 250 Part I.D. Codes Standard; Expandable Up To 2,500
Since 1997 Raven Engineering has been building world class balancing and gauging equipment for every type of rotating component. Our goal is simple; to add value to your product and process by providing the most robust, accurate, and repeatable machines at competitive prices and with the best possible lead times.
