Gauging & Measurement Systems

Semi and Fully Automatic Gauges

  • Designed to measure specific dimensional and geometric parameters
  • Rugged construction for increased up-time and availability
  • Several configurations are both easy to operate and quick to set up
  • Part weight range from 1kg – 100kg
  • Modular construction promotes ease of maintenance
  • Ideal for inspection labs and job shops all the way up to fully automatic, high volume manufacturing facilities
Bench Top Gauging

Air Gauging / Electronic Gauging / Air Electronic Gauging

Hand Gauges & Tools

A complete line from Gauge Blocks, Caliper Checkers, and Measuring Pins to Plug Gauges, Snap Gauges, and Ring Gauges. Air Probes or Contact Type. We have a simple solution for even delicate measurements.

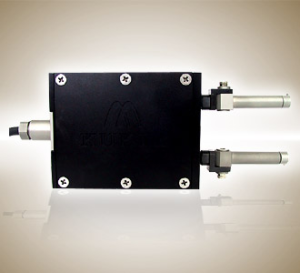

Probes & Gauge Heads

Measuring probes (Inductive Transducers) are available with stroke range from 0.25mm to 10.0mm. Gauge heads available in several standard and custom configurations.

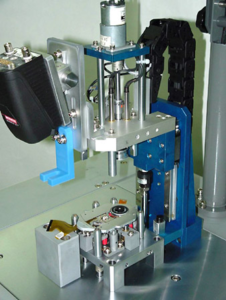

Bench & Fixture Gauges

Easy to move around. Quick and simple to operate. Many different configurations for measuring just about any part characteristic.

Semi-Automatic Gauges

Manually loaded but with 100% automatic operation, our semi-automatic gauges are cost effective in lower volume operations without sacrificing quality measurement.

Automatic Gauges

All of Raven Engineering's automatic gauges are designed to measure 100% of your parts quickly and efficiently with high uptime and availability.
